6.11.5.6 ECAP

Table 6-43, Table 6-44, Figure 6-41, Table 6-45, and Figure 6-42 present timing conditions, timing requirements, and switching characteristics for ECAP.

Table 6-43 ECAP Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 1 4 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 7 pF
Table 6-44 ECAP Timing Requirements see Figure 6-41
NO. PARAMETER DESCRIPTION MIN MAX UNIT
CAP1 tw(CAP) Pulse duration, CAP (asynchronous) 2P(1) + 2 ns
(1) P = MAIN_PLL0_HSDIV6 period in ns.

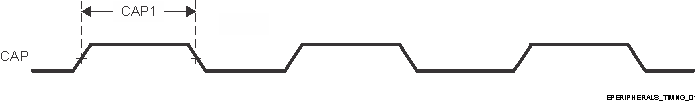

AM62L ECAP Timings Requirements Figure 6-41 ECAP Timings Requirements
Table 6-45 ECAP Switching Characteristics see Figure 6-42
NO. PARAMETER DESCRIPTION MIN MAX UNIT
CAP2 tw(APWM) Pulse duration, APWMx high/low 2P(1) - 2 ns
(1) P = MAIN_PLL0_HSDIV6 period in ns.
AM62L ECAP Switching Characteristics Figure 6-42 ECAP Switching Characteristics

For more information, see Enhanced Capture (ECAP) Module section in Peripherals chapter in the device TRM.
