6.11.5.8 EPWM

Table 6-51, Table 6-52, Figure 6-45, Table 6-53, Figure 6-46, Figure 6-47, and Figure 6-48 present timing conditions, timing requirements, and switching characteristics for EPWM.

Table 6-51 EPWM Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 1 4 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 7 pF
Table 6-52 EPWM Timing Requirements see Figure 6-45
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PWM6 tw(SYNCIN) Pulse duration, EHRPWM_SYNCI 2P(1) + 2 ns
PWM7 tw(TZ) Pulse duration, EHRPWM_TZn_IN low 3P(1) + 2 ns
(1) P = MAIN_PLL0_HSDIV6 period in ns.
AM62L EPWM Timing Requirements Figure 6-45 EPWM Timing Requirements
Table 6-53 EPWM Switching Characteristics see Figure 6-46, Figure 6-47, and Figure 6-48
NO. PARAMETER DESCRIPTION MIN MAX UNIT
PWM1 tw(PWM) Pulse duration, EHRPWM_A/B high/low P(1) - 3 ns
PWM2 tw(SYNCOUT) Pulse duration, EHRPWM_SYNCO P(1) - 3 ns
PWM3 td(TZ-PWM) Delay time, EHRPWM_TZn_IN active to EHRPWM_A/B forced high/low 11 ns
PWM4 td(TZ-PWMZ) Delay time, EHRPWM_TZn_IN active to EHRPWM_A/B Hi-Z 11 ns
PWM5 tw(SOC) Pulse duration, EHRPWM_SOCA/B output P(1) - 3 ns
(1) P = MAIN_PLL0_HSDIV6 period in ns.
AM62L EHRPWM Switching Characteristics Figure 6-46 EHRPWM Switching Characteristics

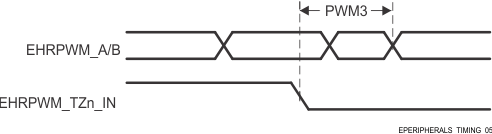

AM62L EHRPWM_TZn_IN to EHRPWM_A/B Forced Switching Characteristics Figure 6-47 EHRPWM_TZn_IN to EHRPWM_A/B Forced Switching Characteristics
AM62L EHRPWM_TZn_IN to EHRPWM_A/B Hi-Z Switching Characteristics Figure 6-48 EHRPWM_TZn_IN to EHRPWM_A/B Hi-Z Switching Characteristics

For more information, see Enhanced Pulse Width Modulation (EPWM) Module section in Peripherals chapter in the device TRM.
