The data received and transmitted over MII conforms with the frame structure shown in Table 6-442.
Inter-frame | Preamble | Start of Frame Delimiter (SFD) | Data | Cyclic Redundancy Check (CRC) |

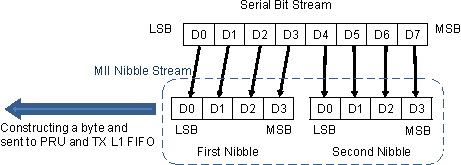

The data following the SFD is formatted in a 4-bit nibble structure. Figure 6-238 illustrates the nibble order. The MSB arriving first is on the LSB side of a nibble. When receiving data, the MII_G_RT receive logic will wait for the next nibble to arrive before constructing a byte and delivering to the PRU.
