1.4 Internal Package Geometrical Configuration

This topic refers to the layout within a package, be it a traditional lead frame package, small pad (S-pad) package, lead-on-chip (LOC), or ball grid array (BGA) package. More mundane geometrical configurations can also have a major impact on the package thermal performance. These can include the distance between the tips of the lead in the package and the die pad as shown in Figure 1-3, or even the downset between the pad and lead fingers. The latter is an especially important thermal criterion in thin packages. In BGAs, design of the interposer trace configuration is important in spreading heat from the die to the package balls where it is conducted into the PCB.

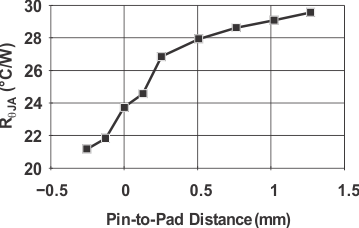

GUID-DDC180B1-F980-4AB2-83F8-025A83D7309B-low.gifFigure 1-3 RθJA vs Pin-to-Pad Distance
